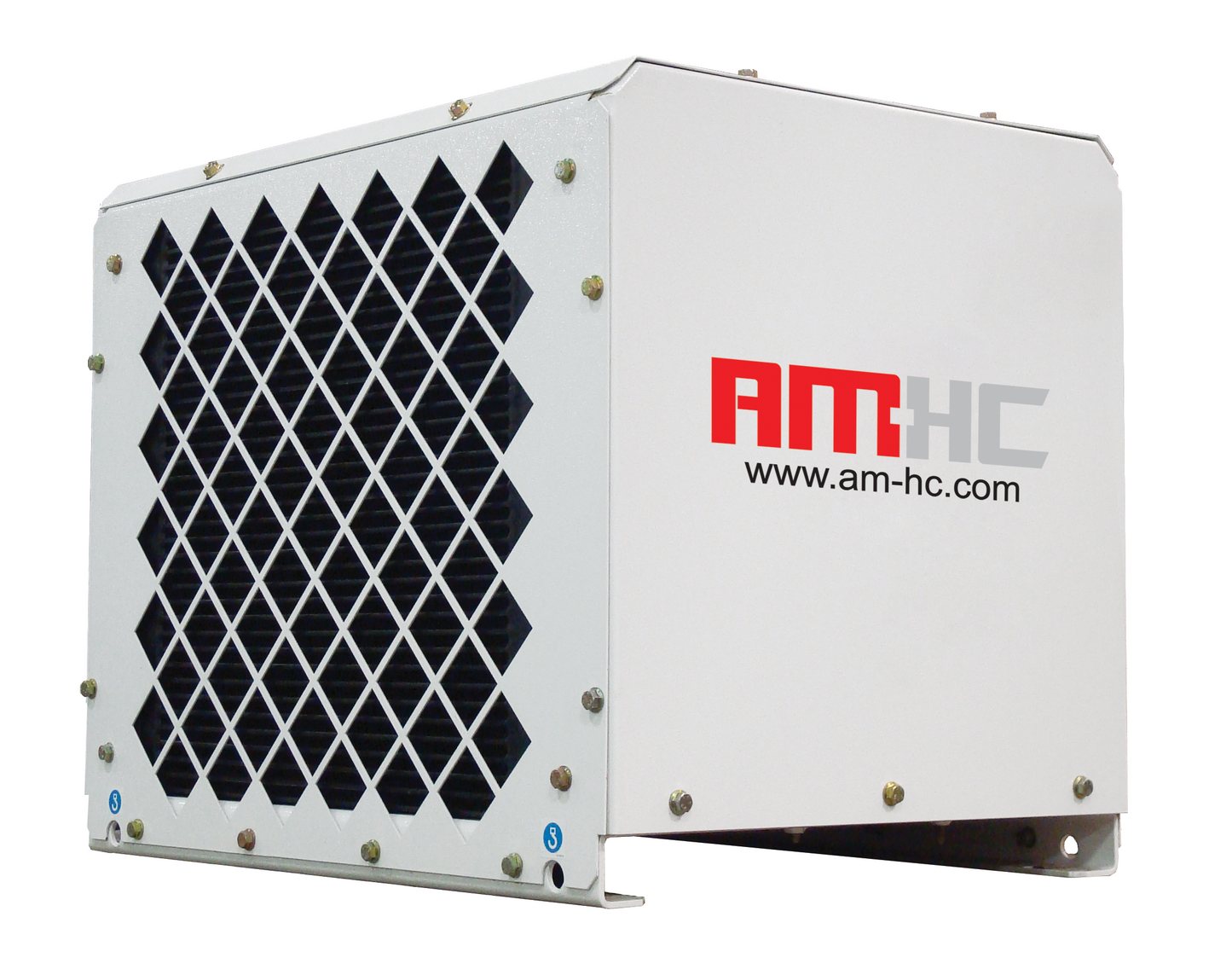

HP60CMH
HP60CMH
Regular price
$11,000.00
Regular price
Sale price
$11,000.00
Unit price
/
per
Couldn't load pickup availability
Package Features for HP60CMH
- Built-in hydraulic cooling on the HP60CMH
- Easily serviced, replaceable air cleaner cartridge
- Conveniently located service panels for all routine maintenance
- Remote, easy-access compressor oil drain
- No-spill, spin-on separator element and oil filter
- Stepless regulation system
- Full enclosure with high-quality powdercoat paint finish
- Simplified internal piping; oil temp bypass valve, min pressure valve, scavenge method, oil filter, and air/oil separator element are combined in one apparatus
- Elastomer coupling between motor and airend (MHP85CMH only)
- 12-volt output signal to activate vehicle throttle control (HP60CMH only)
Compressor Features
- 100 percent continuous duty rating
- Oil-flooded, rotary screw airend designed and manufactured by Ingersoll Rand
- Integral air/oil separation system build into compressor casting (HP60CMH only)
Hydraulic System Features
- Cast iron (HP60CMH) and Aluminum (MHP85CMH) gear-types, hydraulic motor with case drain
- Hydraulic pressure relief valve built into system (3000 psi)
- Coast-down anti-cavitation check valve included
- Permanent precision alignment of hydraulic motor, coupling, and airend for extended coupling life (MHP85CMH only)
Instrumentation
- Discharge air pressure gauge
- Discharge air temperature gauge (MHP85CMH)
- Hour meter
- Compressor oil level gauge
Air Cleaner
- Heavy-duty single stage with replaceable element
Safety
- ASME pressure relief safety valve
- Minimum pressure valve
- Automatic blowdown valve
- OSHA fan guard
- High-discharge airend temperature shutdown system
| HP60CMH Specifications | |
|---|---|
| Max cfm – cfm (m3/min) | 60 (1.7) |
| Max psi – psi (bar) | 150 (10.3) |
| Hydraulic – gpm (L/min) | 18.1 (68.5) |
| Hydraulic – psi (bar) | 2295 (158.2) |
| Length – inches (mm) | 28.7 (729) |
| Width – inches (mm) | 21.9 (557) |
| Height – inches (mm) | 23.6 (600) |
| Weight (wet) – lb. (kg) | 336 (152) |
| Weight (dry) – lb. (kg) | 328 (149) |
